Plug Type Cold Room Panels

YOYCOOL have more than twenty years manufacture experience, We have 12 production lines for cold room panels and cold room doors.
PU or PIR as core material, and zinc-plated & color-coated steel sheets& stainless steel sheet & aluminum sheet as the upper and bottom sheets. The panels are formed by heating and pressing with high-intensity glue by professional continuous production line.
We can produce it very quickly

Quantity:
Availability:





Inquire Add to Basket

Model:
YOY002-1
Brand:
YOYCOOL
Code:
3921139000

PU or PIR Cold Room Panels With Plug Type

YOYCOOL have more than twenty years manufacture experience, We have 12 production lines for cold room panels and cold room doors.
PU or PIR as core material, and zinc-plated & color-coated steel sheets& stainless steel sheet & aluminum sheet as the upper and bottom sheets. The panels are formed by heating and pressing with high-intensity glue by professional continuous production line.
We can produce it very quickly.

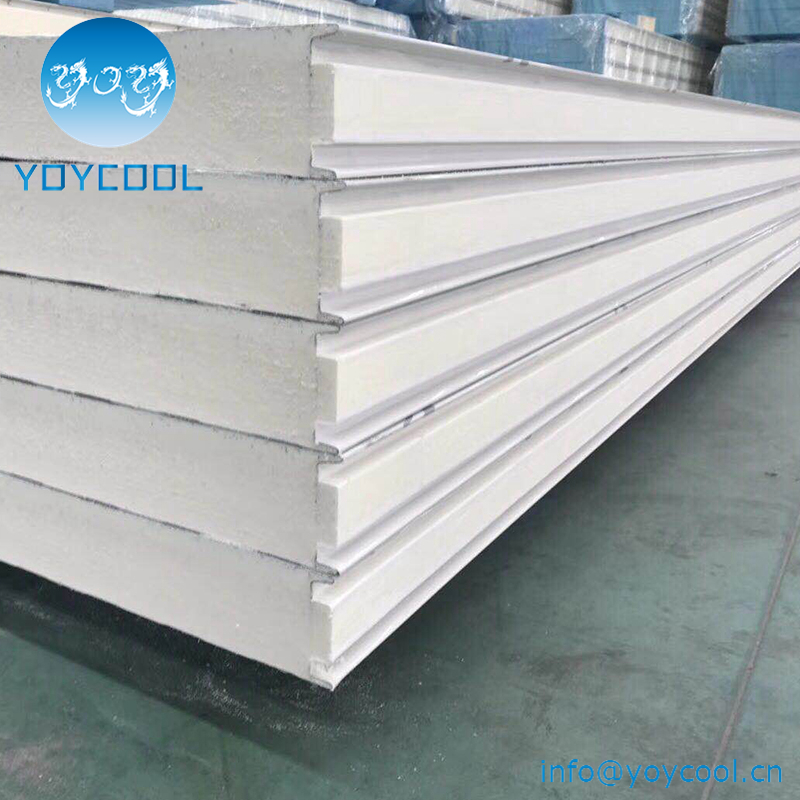

www.yoycool.cn- cold room plug panel type-2_副本

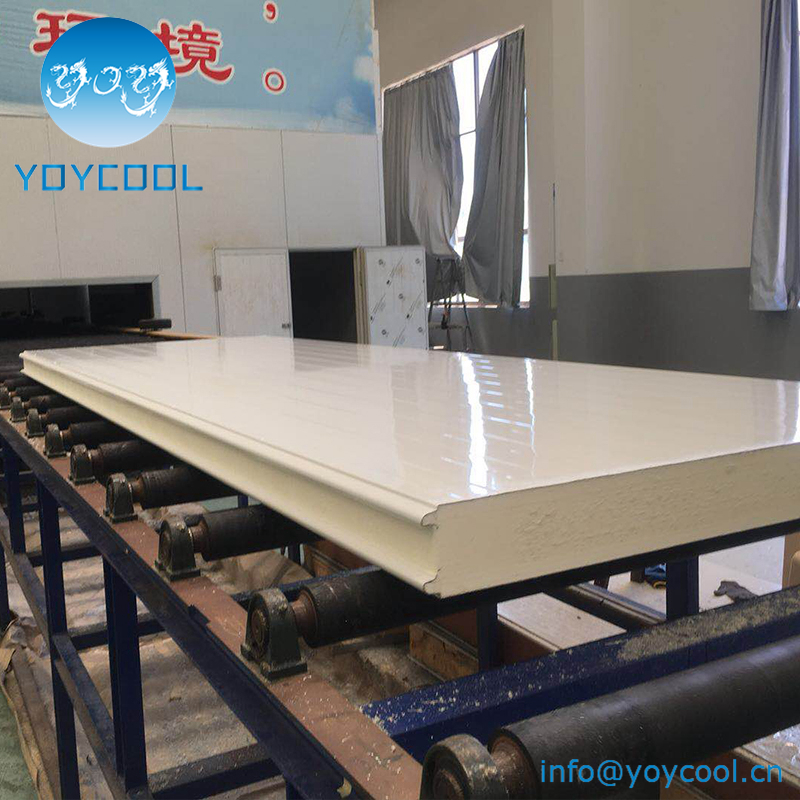

www.yoycool.cn- cold room panels with plug type 1_副本

www.yoycool.cn- cold room panels with plug type 6_副本

Name	Cold Room Panel - Plug Type
Component	Top plate	Core material	Bottom plate
Thickness	0.3-0.8mm (normal use)	50-200mm	0.3-0.8mm (normal use)
Material	PPGI, PPGL, Stainless, Aluminum	PU or PIR	PPGI, PPGL, Stainless, Aluminum
Type mode	1120mm PU wall and ceiling and roof cold room sandwich panel
Color	Ral standard (normal colors : white)
Connection Type	Plug
Density	PU : 40±2 kg/m3 PIR : 45±2 kg/m3
Heat Conductivity	PU: ≤0.022 W/(m·K) PIR: ≤0.02 W/(m·K)
Compressive Strength	PU: ≥150Kpa PIR: ≥160Kpa
Combustion Performance	PU: B2 PIR: B1

www.yoycool.cn- cold room panels with plug type 7_副本

www.yoycool.cn- cold room panels with plug type 8_副本

www.yoycool.cn- cold room panels with plug type 10_副本

www.yoycool.cn- cold room panels with plug type 9_副本

Name	Cold Room Panel - Plug Type
Component	Top plate	Core material	Bottom plate
Thickness	0.3-0.8mm (normal use)	50-200mm	0.3-0.8mm (normal use)
Material	PPGI, PPGL, Stainless, Aluminum	PU or PIR	PPGI, PPGL, Stainless, Aluminum
Type mode	1120mm PU wall and ceiling and roof cold room sandwich panel
Color	Ral standard (normal colors : white)
Connection Type	Plug
Density	PU : 40±2 kg/m3 PIR : 45±2 kg/m3
Heat Conductivity	PU: ≤0.022 W/(m·K) PIR: ≤0.02 W/(m·K)
Compressive Strength	PU: ≥150Kpa PIR: ≥160Kpa
Combustion Performance	PU: B2 PIR: B1
